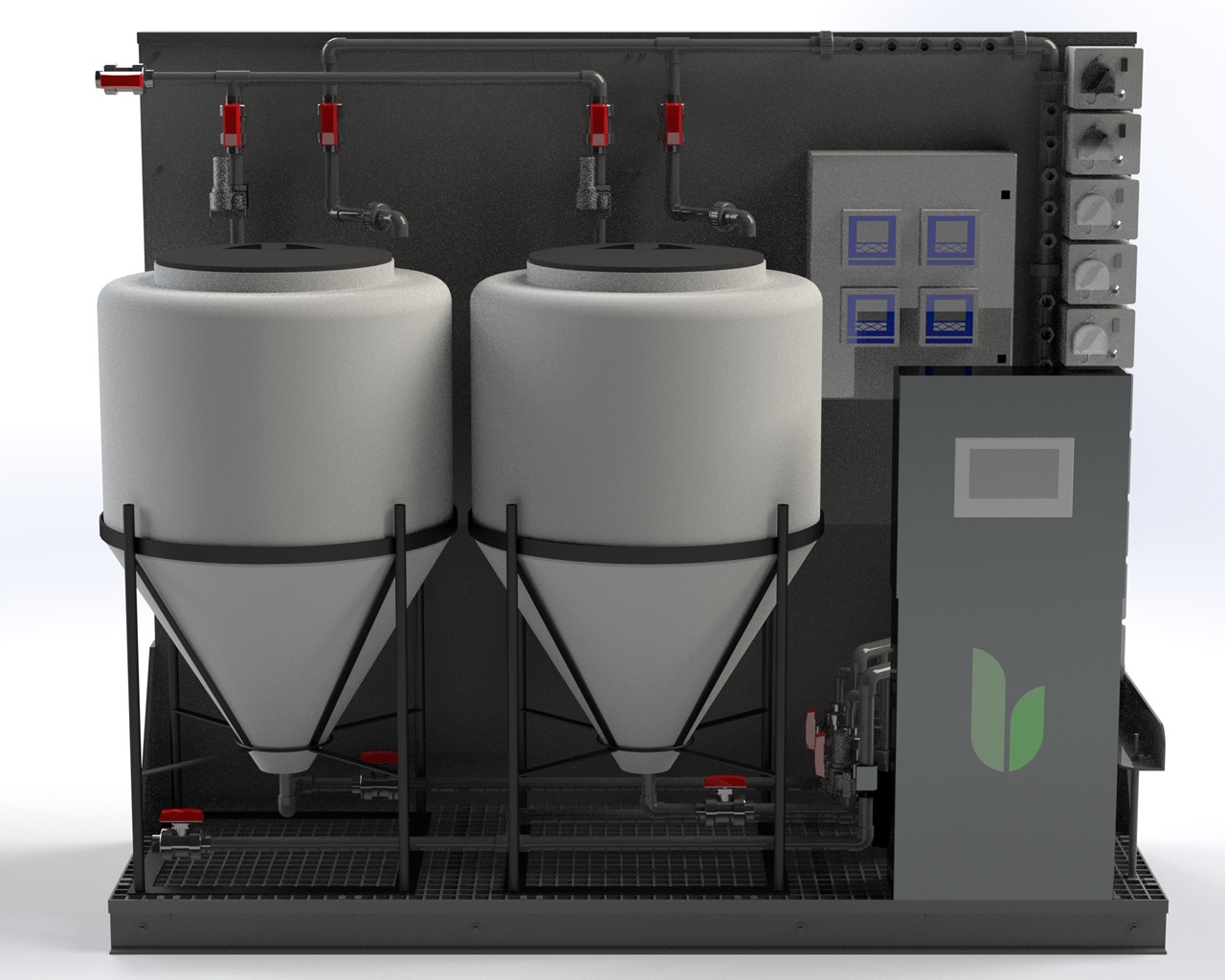

EDEN BATCH

The Eden Batch environmental control system, powered by TGC, combines high-quality components and construction with easy to use functionality. Offering complete control for any size grow, Eden Batch’s proprietary control system doesn’t require complicated programming—simply use the intuitive touchscreen interface to begin controlling nutrient and water delivery, capturing environmental data, and controlling lights in your cultivation facility.

  • Unlimited Number of Rooms
  • Skid Mounted 220-240V
  • Two 100 Gallon Tanks
  • Batch System – Unlimited Nutrient Zones
  • Touchscreen and Mobile Interface
[vcex_button url=”https://www.totalgrowcontrol.com/product/soleil-3-in-1/” layout=”expanded”]Order Batch Now![/vcex_button][vcex_button url=”https://www.totalgrowcontrol.com/eden-batch/#prod-specs-3″ target=”local” layout=”expanded”]Product Specifications[/vcex_button]

Eden Batch HIGHLIGHTS

[vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Dual 100 Gallon tanks for demanding feeding application[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Blend tanks w/ ultrasonic level sensing for overfill protection[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Precise EC and pH control with verification/validation prior to delivery[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″] Built in Eden technology eliminates the need for additional HVAC or CO2 controllers[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]CO2/RH/Temperature Environmental Canopy Sensors map your environment[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Wide range of soil/substrate applications[/vcex_list_item]
[vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Metered Nutrient blend delivery to crops with inlet and outlet flow sensors[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]20 pre-programmed recipes for automatic Blending/Nutrient Delivery[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Reliable self-priming peristaltic pumps (8 Nutrient and 2 pH pumps)[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Feed Water Temperature monitoring[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]High-quality maintainable components ensure long system life[/vcex_list_item]

Eden Batch

Platform
Batch
Weight
955 LBS. (Approximate)
Tanks
(2) 100 Gallon Conical Tanks
RoomAny
Requirements
Water: 15-20 GPM
Electric: 20Amp, 220-240VAC, 1Phase
Cat 5 (Ethernet Cable)
Programmable Alerts
Yes
Program Required
Plug and Play
Nutrient Zones
Any
Mounting
Skid
Monitors & Controls (Environmental Sensors included)
2x pH, 2x EC, Temperature, Pressure, Remote IO can be added and have all the Eden features
Mobile Interface
Yes
Mixing Pumps
8 Nutrient Pumps,
Two PH up and down pumps
Mixing / Verification Loop & Sensors
Yes
Maximum Supply Pressure
Maximum Flow
0 - 79.3 GPM
Flow Rate / Injection Ratios
Flow Meters
Fresh water inlet and nutrient feed outlet meters
Display (size)
15" Touchscreen HMI
Dimensions
96"W x 36"D x 86"H
Customizable
Yes
