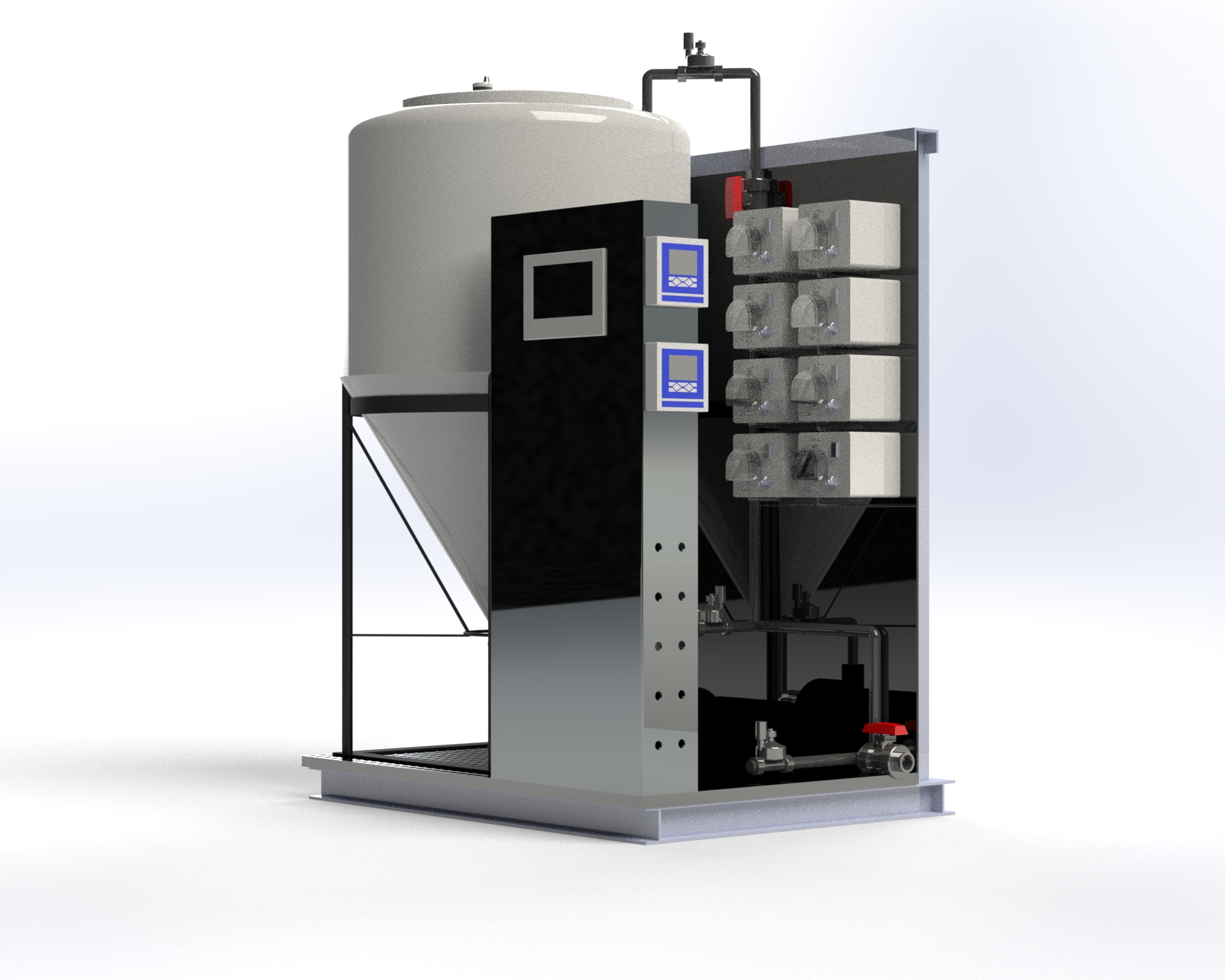

EDEN LT

The Eden LT environmental control system, powered by TGC, combines high-quality components and construction with easy to use plug-and-play functionality. Offering complete control for smaller grows, Eden LT’s proprietary control system doesn’t require complicated programming—simply plug the system in and use the intuitive touchscreen interface to begin controlling nutrient and water delivery, capturing environmental data, and controlling lights in your cultivation facility

  • Facilities with up to 4 Rooms
  • Skid Mounted 110V Plug-and-Play
  • Fits Through Standard 60” Doorway
  • Batch System – Up to 10 Nutrient Zones
  • Touchscreen and Mobile Interface
[vcex_button url=”https://www.totalgrowcontrol.com/product/eden-lt/” layout=”expanded”]Order Eden LT Now![/vcex_button][vcex_button url=”https://www.totalgrowcontrol.com/eden-lt/#prod-specs-1″ target=”local” layout=”expanded”]Product Specifications[/vcex_button]

EDEN LT HIGHLIGHTS

[vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Pre-wired CO2/RH/Temperature Environmental Sensors with light detection – 100 Ft. cable each[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]55 Gallon blend tank w/ ultrasonic level sensing and Nutrient Verification loop[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Precise EC and pH control with verification/validation prior to delivery[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]No need for additional controllers. Built in Eden controller.[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Wide range of soil/substrate applications[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Metered Nutrient blend delivery to crops[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]4 independent nutrient feed valves[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Minimal investment requirement[/vcex_list_item]
[vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Nutrients are injected directly into Mixing Tank eliminating crystallization in the piping[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]20 pre-programmed recipes for automatic Blending/Nutrient Delivery[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Reliable self-priming peristaltic pumps (4 Nutrient and 2 pH pumps)[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Powered by TGC’s comprehensive EDEN Control platform[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Stainless Steel, corrosion-resistant frame[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Supply Water Temperature monitoring[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]Built around a standard platform[/vcex_list_item][vcex_list_item text_align=”left” icon=”fa fa-check” color=”#ffffff” font_color=”#ffffff” font_size=”16″ icon_size=”20″]High-quality components[/vcex_list_item]

Eden LT

Platform
Batch
Weight
955 LBS. (Approximate)
Tanks
100 Gallon Conical Tank
Room4-5
Requirements
Water: 15-20 GPM
Electric: 20Amp, 220-240VAC, 1Phase
Cat 5 (Ethernet Cable)
Programmable Alerts
Yes
Program Required
Plug and Play
Nutrient Zones
4 to 8
Mounting
Skid
Monitors & Controls (Environmental Sensors included)
pH, EC, Temperature, CO2, Air temperature, Humidity, Light
Mobile Interface
Yes
Mixing Pumps
6 Nutrient Pumps,
PH up and down pumps, One half HP
Mixing / Verification Loop & Sensors
Yes
Maximum Supply Pressure
Maximum Flow
Flow Rate / Injection Ratios
Flow Meters
Incoming
Display (size)
9 PCL Based with HMI Touchscreen
Dimensions
60"W x 36"D x 60"H
Customizable
No
